Custom CNC Machining Aluminum Pulleys

Lightweight, high‑strength engine belt pulleys — machined from solid aluminum for automotive, racing, and industrial applications.

Why CNC for Aluminum Pulleys?

An engine pulley isn’t just a wheel — it’s a precision component that must maintain belt alignment, balance, and runout at high RPM. CNC machining delivers the accuracy and consistency that cast or stamped pulleys can’t match.

Typical Specifications

Material6061‑T6 · 7075‑T6 · 2024‑T3
Bore tolerance±0.01 mm (H7 or custom)
Groove profileV‑belt (A/B/SPA/SPB) · multi‑rib (PK) · timing
Runout (TIR)≤ 0.02 mm
Dynamic balanceG2.5 or better @ operating RPM
Surface finishRa ≤ 0.8 μm (groove faces)
AnodizingClear · black · hard coat (Type III)
Custom profiles, keyways, and mounting patterns available.
Materials

Aluminum Alloys for Pulleys

Select the right alloy for your application — balancing strength, weight, machinability, and cost.

6061‑T6

Standard choice

Excellent machinability, good corrosion resistance, and cost‑effective. Widely used for OEM and aftermarket pulleys.

7075‑T6

High‑strength

Nearly twice the tensile strength of 6061. Ideal for racing, high‑RPM, and heavy‑load applications where weight is critical.

2024‑T3

Aerospace grade

High fatigue strength and good machinability. Used in extreme applications where both strength and light weight are required.

Manufacturing Process

From aluminum bar stock to a finished, balanced pulley — each stage is controlled for precision and repeatability.

01

CNC Turning (OD / ID)

Rough and finish turning of outer diameter, bore, and face. Single‑setup turning ensures bore‑to‑OD concentricity.



02

Groove Milling & Profiling

Precision milling of V‑grooves, multi‑rib profiles, or timing teeth. CNC‑controlled form tools ensure consistent belt engagement.

03

Balancing & Finishing

Dynamic balancing, deburring, keyway broaching, and surface finishing. Hard anodizing available for wear resistance.

Inside MachMaster's Manufacturing Facility

With over 20 years of manufacturing experience, MachMaster operates a 5,000㎡ manufacturing facility in Xiamen, China. Our factory brings together CNC machining, plastic injection molding, in-house anodizing, quality inspection, and packaging to support custom parts manufacturing from prototypes to production.

Years Manufacturing Experience
20 +
CNC Machining Machines
40 +
Employees
70 +
Manufacturing Facility
5000 ²
custom cnc machining aluminum pulleys 1

CNC Machining Workshop

Equipped for CNC milling, turning, and multi-axis machining.

custom cnc machining aluminum pulleys 2

Injection Molding Workshop

8+ injection molding machines ranging from 90 to 500 tons.

custom cnc machining aluminum pulleys 3

Anodizing Workshop

Our own anodizing production line for aluminum components

custom cnc machining aluminum pulleys 4

Inspection & Packaging

Dimensional inspection, finishing coordination, and finished-part packaging.

Design Guide

Design Considerations
for Pulleys

Key design parameters our engineering team reviews to ensure manufacturability and performance.

Groove Profile & Finish

V‑grooves and multi‑rib profiles must match belt specs precisely. We machine to ANSI / ISO standards with Ra ≤ 0.8 μm on contact faces.

Bore & Keyway Fit

Specify H7 or custom bore tolerance. Keyways must be positioned accurately — we hold ±0.02 mm for keyway location relative to grooves.

Wall Thickness & Weight

Thin sections reduce inertia but can cause chatter. We recommend minimum 3‑4 mm wall thickness for structural integrity during machining.

Anodizing Considerations

Hard anodizing (Type III) adds wear resistance but changes dimensions by 0.02‑0.05 mm — account for this in your tolerance stack.

Applications

CNC machined aluminum pulleys are used across automotive, racing, and industrial sectors.

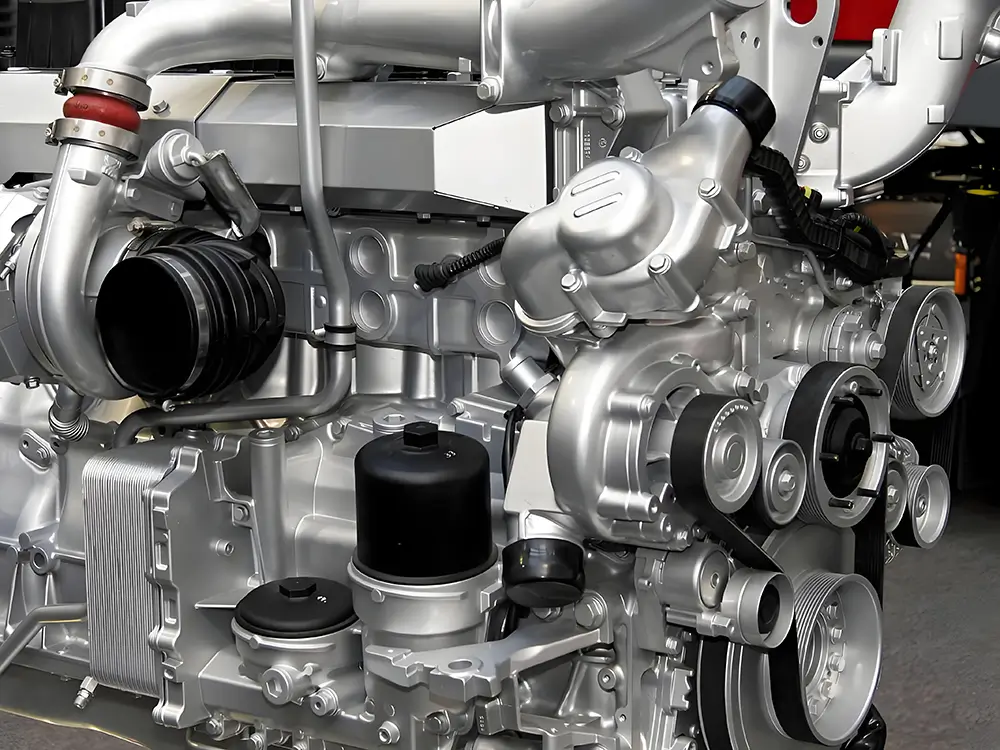

The location and function of the car engine and its pulleys.

Ready to Machine Your Pulley?

Upload your CAD, specify material and groove profile. We’ll review, balance the design for manufacturability, and quote within 24 hours.
